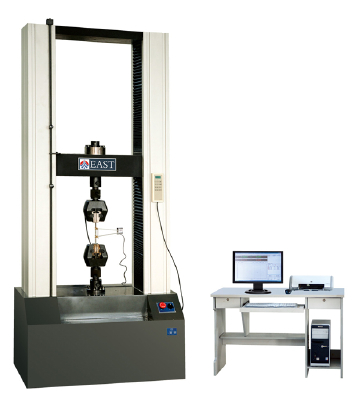

WDW computer controlled electronic universal testing machine standard form

 Features mechanical smoothness and operational convenience the crossbeam and the platforms are fixed by uprights and precision ball screw. The AC servo motor and servo driver drive the ball screw through the aluminum alloy reducer and the timing belt to bring the crossbeam into upward and downward movement It can carry out various tests including stretch, compression, bending, peeling, shearing, tearing, puncture, bursting ,and high and low temperature tests according to the standards of GB, ISO,ASTM , JIS, DIJ, etc Material parameters such as yield strength, tensile strength, compression strength, bending strength coefficient of elongation, stretching strength, disproportional strength, and elasticity modulus can be measured.

Computer controlled electronic universal testing machine standard form can be operated by automatic computer controlling or manual control through a control box. The whole-course operation is conducted through the computer interface. The data processing and testing curve display are automatically completed by the computer. The printing of test report with the A4 breath is available. The safety is ensured by various protection systems, including cylinder position limitation protection, overload auto shutdown, over current and current leakage auto shut-off, emergency switch, etc. Imported servo motor and servo driver bring is adopted as the power supply and synchronous belt and ball screw unit is adopted servo motor and servo driver bring is adopted as the power supply and synchronous belt and ball screw unit is adopted as the transmission mechanism to make the operation smooth and free form noise and oil contamination. Each testing machine is accompanied with a tensile fixture fit for different testing material. The fixture can be altered as demanding and accessories are also available.

    Lenovo brand-name computer is employed as the host to complete the setting, data collection, calculation, display and printing. The intellectualized software KQL-PowerTest2001 (English and Chinese) is equipped on the computer to measure various parameters of material performance according to the setting strandards, process these data, and then output the test report and testing curves as required. The data processing software can meet the demand of the tests on different materials and be conveniently added with new processing methods. It is based on Windows XP, adopts Access database as its kernel, and combines with reliable VB SQL language. The strength value, displacement are measured and showed synchronously and the testing curve is displayed in time. The operator can arbitrarily delete the data of a certain sample, and conduct the zooming and printing of testing curve, and select points to obtain parameters such as yield point, elasticity, etc. The software can calculate tensile strength, compressive strength, yield strength, 0.2, disproportional strength, total elongation strength, coefficient of elongation, etc.

     Compared with WDW0J computer controlled electronic universal testing machine highly-configurable, computer controlled electronic universal testing machine standard form does not have three-loop control functions such as constant force and constant distortion, but yet it satisfies the requirement of ordinary material tests. Because it is driven by electricity, the models with specification below 300 KN have a high performance-cost ratio, while the model with specification above 500KN cost more than hydraulic universal testing machine.

     East Group is a China-based computer controlled electronic universal testing machine manufacturer and supplier. We provide various types of products such as low temperature cryostat, digital display pressure universal testing machine, and tensile and torsion testing amchine.
