- Place of Origin: China
- Brand Name: EAST
- Model Number: JB
Semi automatic impact tester is used to test the impact resistance of test the impact resistance of metal material under dynamic load. It is designed to meet the national standards of GB/T3803-2002(testing of pendulum impact testing machine) and GB/T229-2009(charpy notched-bar impact testing method). It is divided into dial-type, digital display type and computer display type for choice.

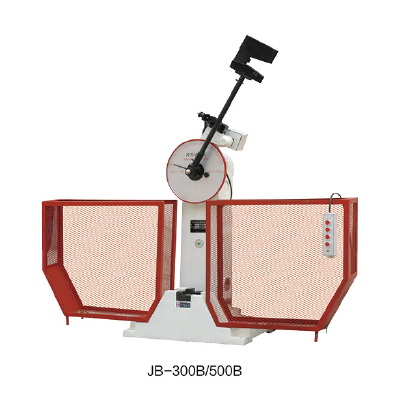

The main machine of semi automatic impact tester adopts single support column structure. The pendulum bob is of U type and hung in cantilever type. The sample is supported in Charpy type. The impact head is fixed with screw and easy to replace. Safety pin and safety net are equipped. All movements of the pendulum are controlled by electricity. After the impact, the residual energy is used to raise the pendulum for the nest test, so it is especially suiable for continuous tests.
As a specialized semi automatic impact tester manufacturer and supplier in China, we provide a comprehensive range of products, including concrete compression testing machine, rubber joint stiffness testing machine, digital display pressure universal testing machine, and more.
Related names
Semi automatic impact tester / impact testing machine / semi automatic impact testing machine
- Place of Origin: China
- Brand Name: EAST
- Model Number: JB
Specifications
Name | Dial-type Semi automatic impact tester
| Digital display Semi automatic impact tester
| Computer display Semi automatic impact tester
| |||
Model | JB-300B | JB-500B | JBS-300B | JBS-500B | JBW-300B | JBW-500B |
Display mode | Dial display | Digital display | Computer screen display | |||
Impact energy | 150/300J | 250/500J | 150/300J | 250/500J | 150/300J | 250/500J |
Distance between pendulum centre and impact point | 750mm | 800mm | 750mm | 800mm | 750mm | 800mm |
Impact speed | 5.4m/s | 5.2m/s | 5.4m/s | 5.2m/s | 5.4m/s | |
Pendulum pre-elevation | 150° | |||||
Span of impact specimen support | 40mm | |||||
Jaw rounded angle | ||||||
Impact blade rounded angle | R2-2.5mm, R8±0.05mm, | |||||
Specimen size | 10(7.5,5,2.5)mm×10mm×55mm | |||||
Power supply | 380 V, according to national standard voltage configuration |
